Acoustical Sound Barrier Panels Profile Rolling Forming Machine

                                     Acoustical Sound Barrier Panels Profile Rolling Forming Machine
Acoustical Sound Barrier Panels Profile Rolling Forming Machine is designed to make the sound barrier panels in batch fully automatically.Acoustic panels are the most popular solution for spaces where echo and reverberation create so much ambient noise, it’s difficult to hear. By absorbing sound, acoustic panels minimize sound reflections and create a more comfortable acoustic environment where speech is intelligible, and loudness is reduced. Here we take some drawing profile for example to show you how to make machine to do the production:

For the Sound Barrier Panels, mostly there are three parts composed to be: bottom, cover and connection channel.

So the rolling forming machine, we need following tools:
1.One production line: punching machine. This machine function should be from decoiler to hold the coil and then to the punching machine, make the sheet with holes and then to the rolling forming machine or recoiler.
2.Second option, if you want to speed up production rate. We can recoiler the punched and then do the rolling forming for bottom profile and back profile.
3.If your factory area is limited, we can make the punching and rolling forming by one machine.
In the following part, we introduce one by one:
Part 1: Punching Line:

Working flow: Hydraulic decoiler -- Servo feeder -- Punching -- Tension and recoiler

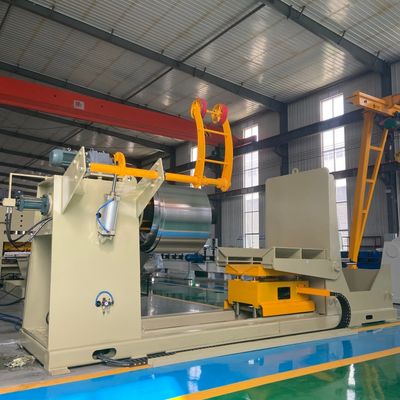

For the decoiler, you can choose manual one or hydraulic one, we recommend better automatic type.

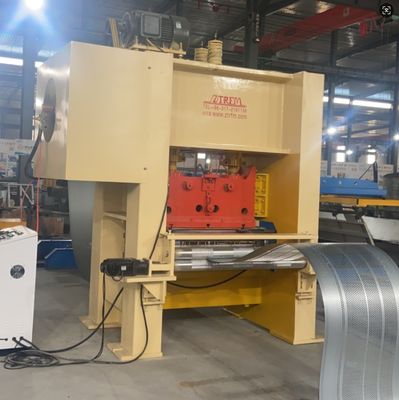

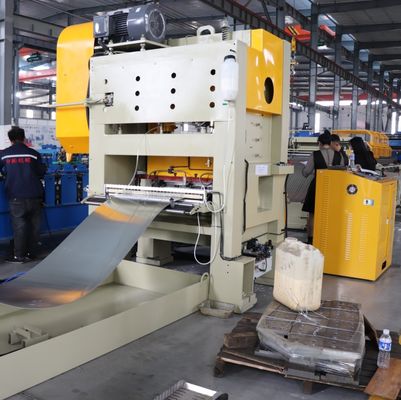

For the punching machine, you can choose China famous brand or normal one.
Recoler is necessary, automatic with tension system.

Part 2: Rolling forming machine

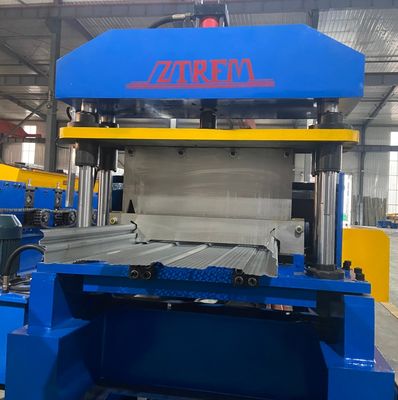

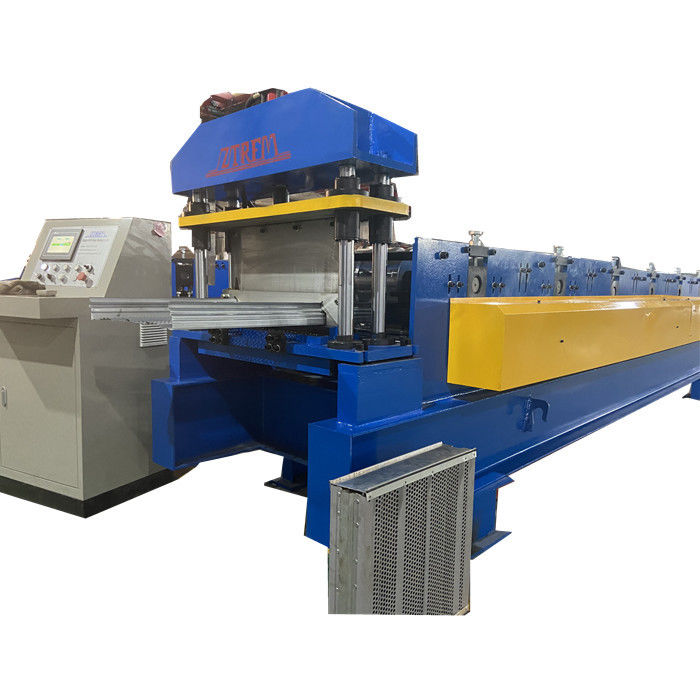

Sound Barrier Panels Profile Rolling Forming Machine, we can fully customize according to your requirements:
For the transmission part, you can use gearbox type or chain type.
For the shearing, you can choose to use the servo tracking shearing or the stop cutting design.
Here we take the economic type for example to show you how we design the machine:
1.About chain: Advantage: This design will make machine more strong, to prolong the machine using life.
2.For the encounter, we use strong holder to make sure durable and accuracy.

3.For the rollers and shaft: Double locking nut with thrust pad and keynotes to ensure that the roller lock cap does not loosen during equipment operation. The keynotes of the roller and the keynotes of the shaft are tightly matched, and the
roller will not slip. Many factories do not have keynotes.

4.For the control panel, normally we use the whole Siemens system;

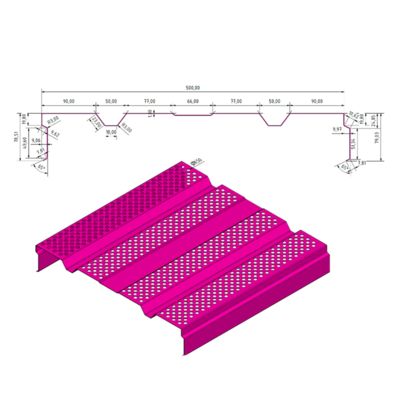

We have made many types Acoustical Sound Barrier Panels Profiles, here are more drawing profiles for your reference:

We can fully make Acoustical Sound Barrier Panels Profile Rolling Forming Machine according to your project.
